Indoor Roll UP Banner V801
Couldn't load pickup availability
Delivery
The transportation time is usually 5-30 days
Spec: 850x2000mm
Other spec: 1000x2000mm
Frame size(WxDxH): 910x185x2100mm
Frame weight: 4.7kg
Material: Aluminum base, pole and top bar clip;other part is made of plastic
Package(WxDxH): 970x260x500mm(Carton)
Graphic: 850x2000mm PET Graphic is printed by 6 Color Water Based Pigment Printing.
Adjust tension knob in the side of base to make graphic taut.
MOQ: 1pc
Payments: T/T Paypal
Need screen contact us
Product
-
V801

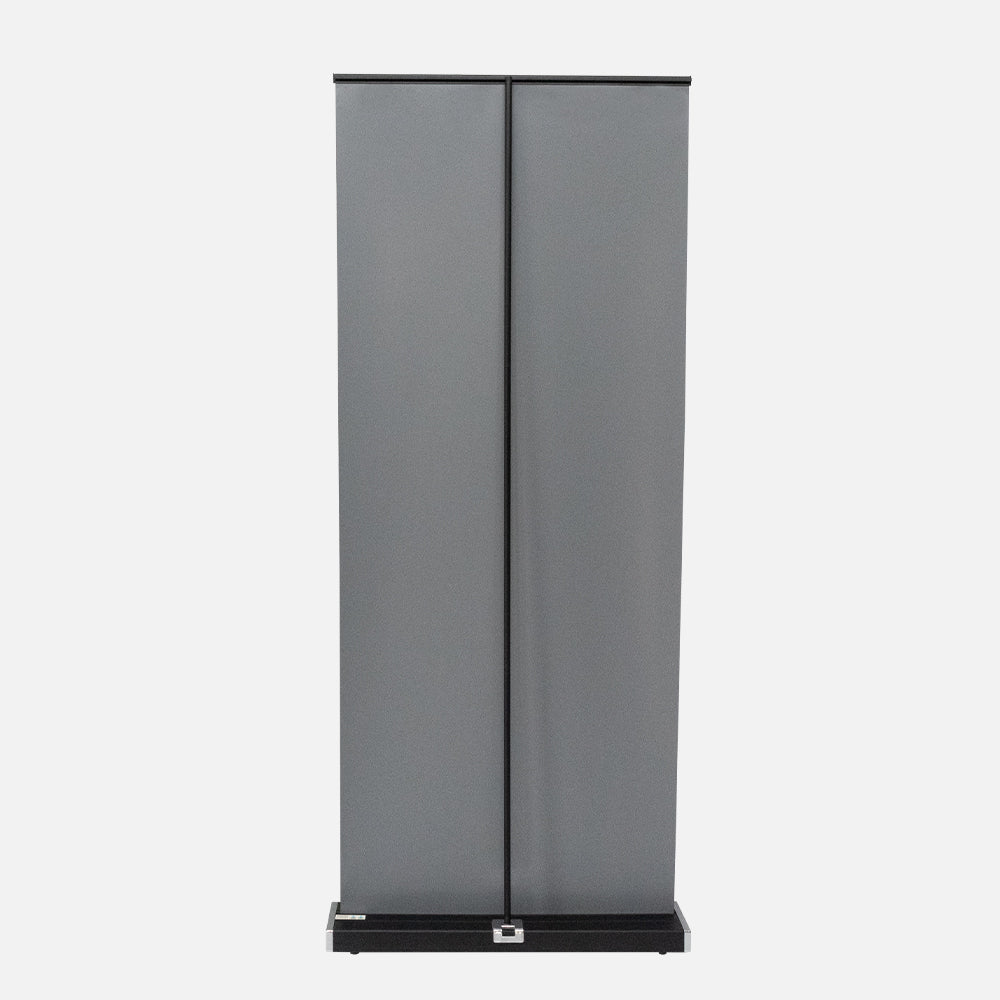

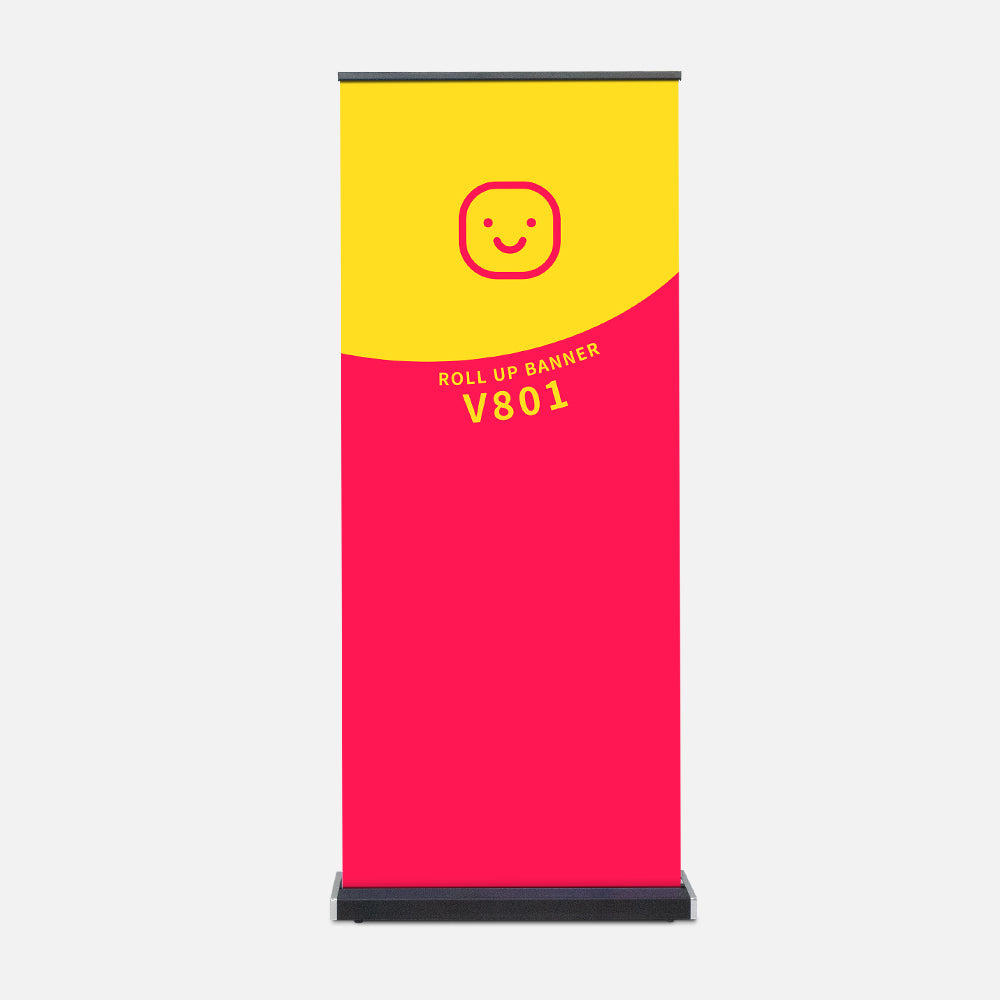

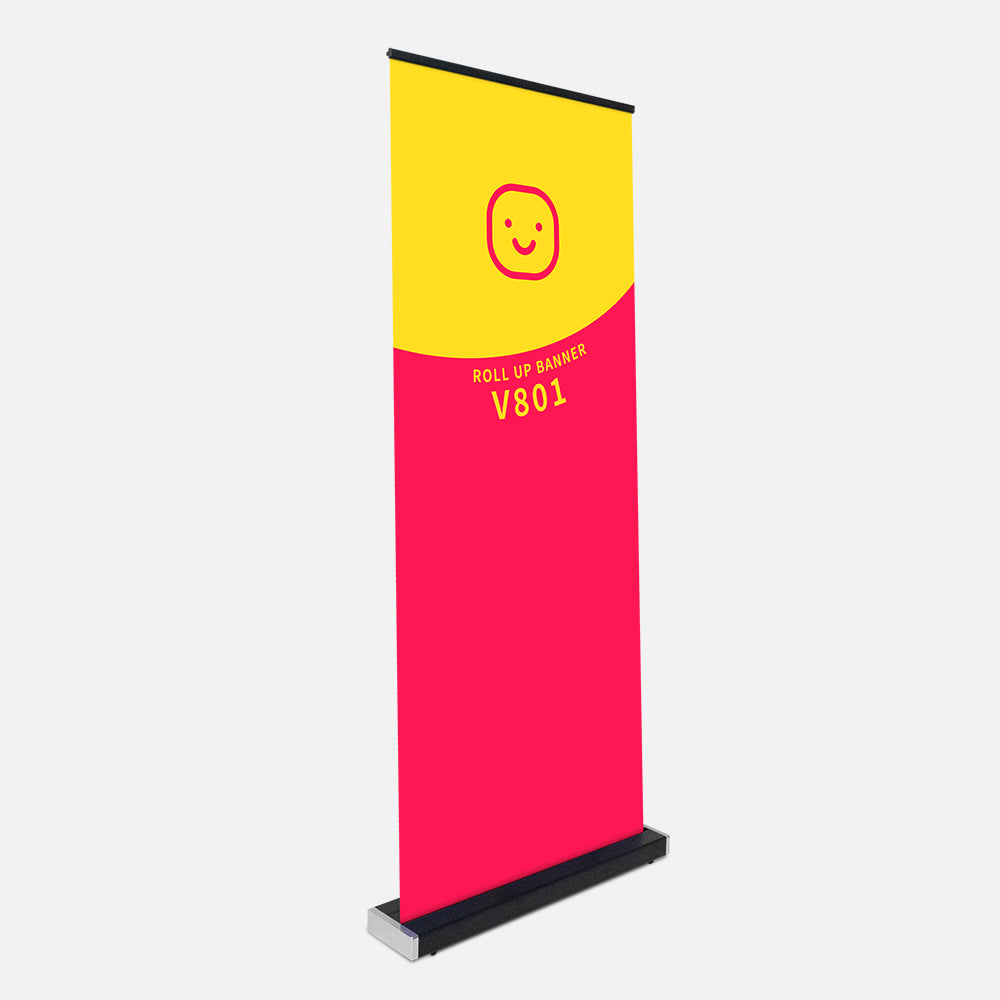

Roll up banner stand V801T is suitable for indoor tradeshow,commercial promotion.
-
Component

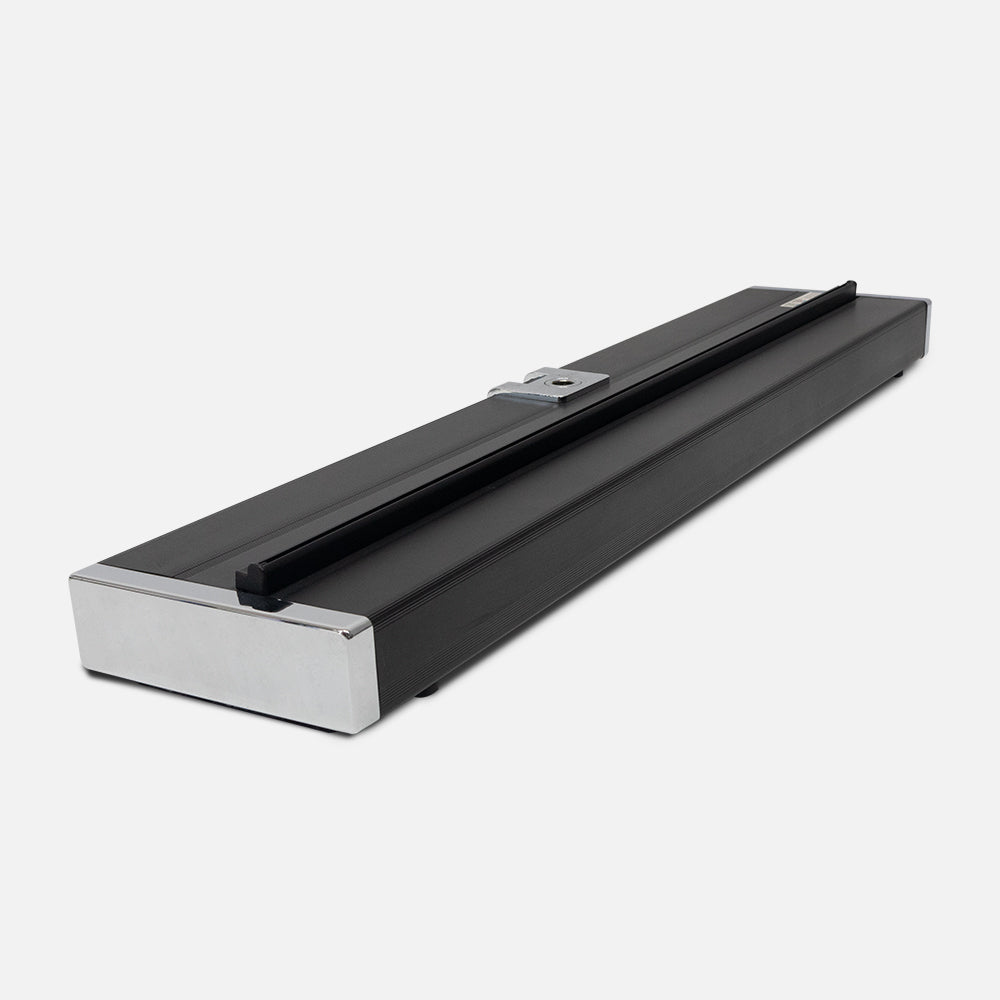

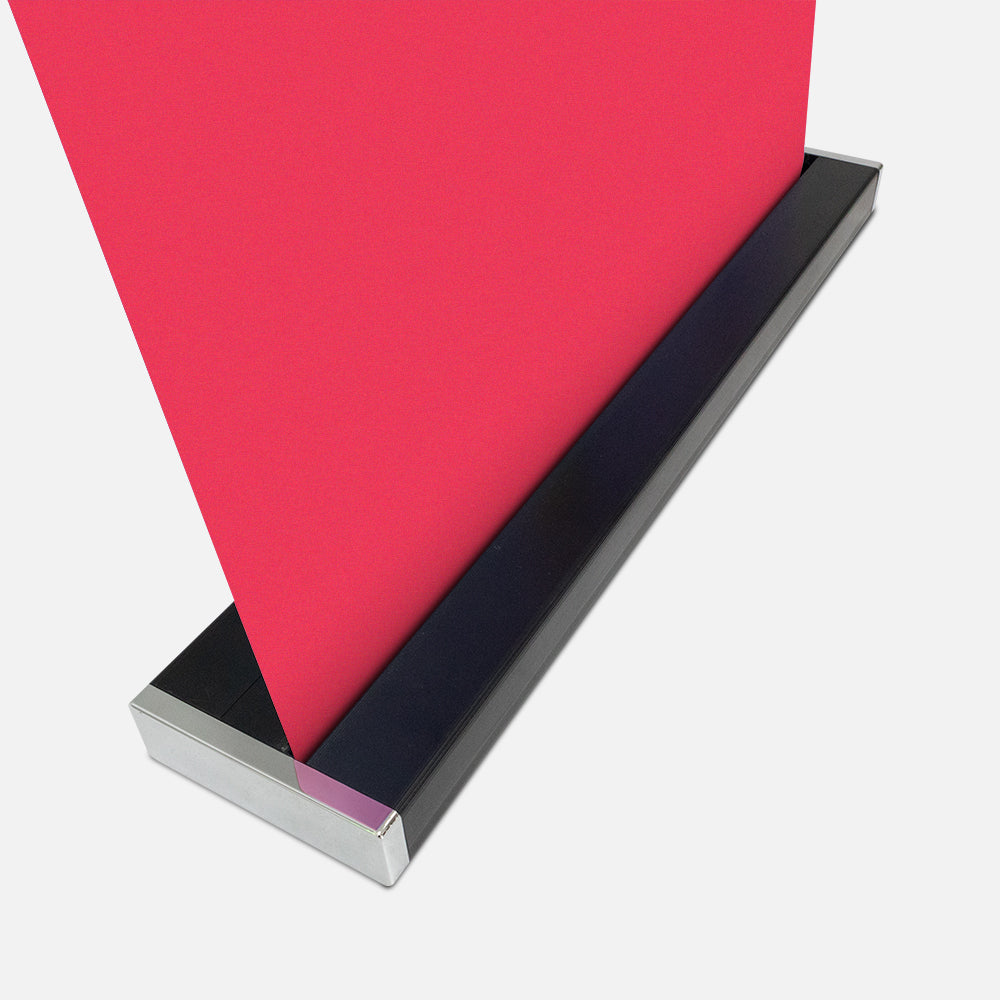

1.Aluminum base
2.Support pole
3.Graphic clamp
4.PET graphic
-
Plastic cap
The plastic cap on the side of base is used to protect axle and knob.
-

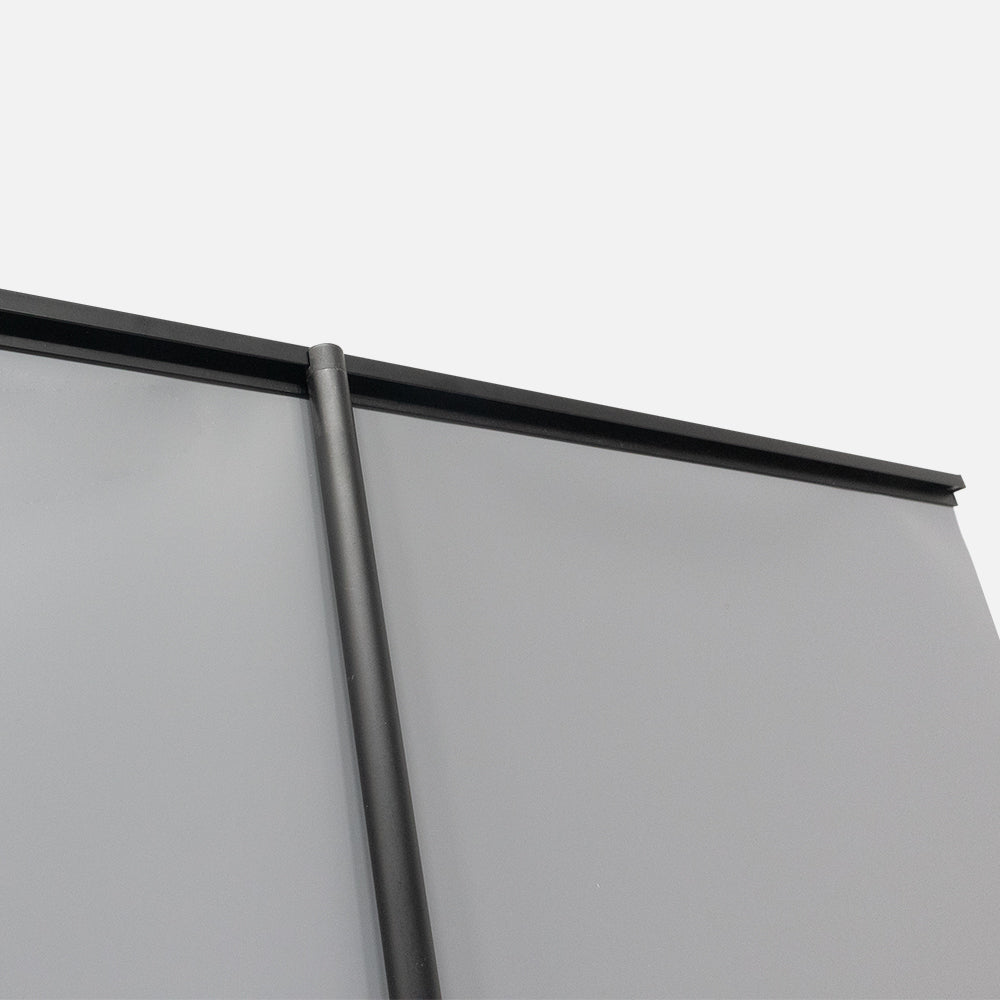

Top rail and cap
Open the top rail and slide the graphic in the groove.
Close top rail to clamp the graphic firmly.
The plastic cap is in the end of top rail.
-
Top rail and cap
Open the top rail and slide the graphic in the groove.
Close top rail to clamp the graphic firmly.
The plastic cap is in the end of top rail.
-
Multi-section Support pole
Insert them together when you install the frame.
The pole is 2 meters long.
-
Multi-section Support pole
The three pieces of support pole are joind by shock cords together.
Fold the pole, when you are not using it.
The pole is 2 meters long.
-

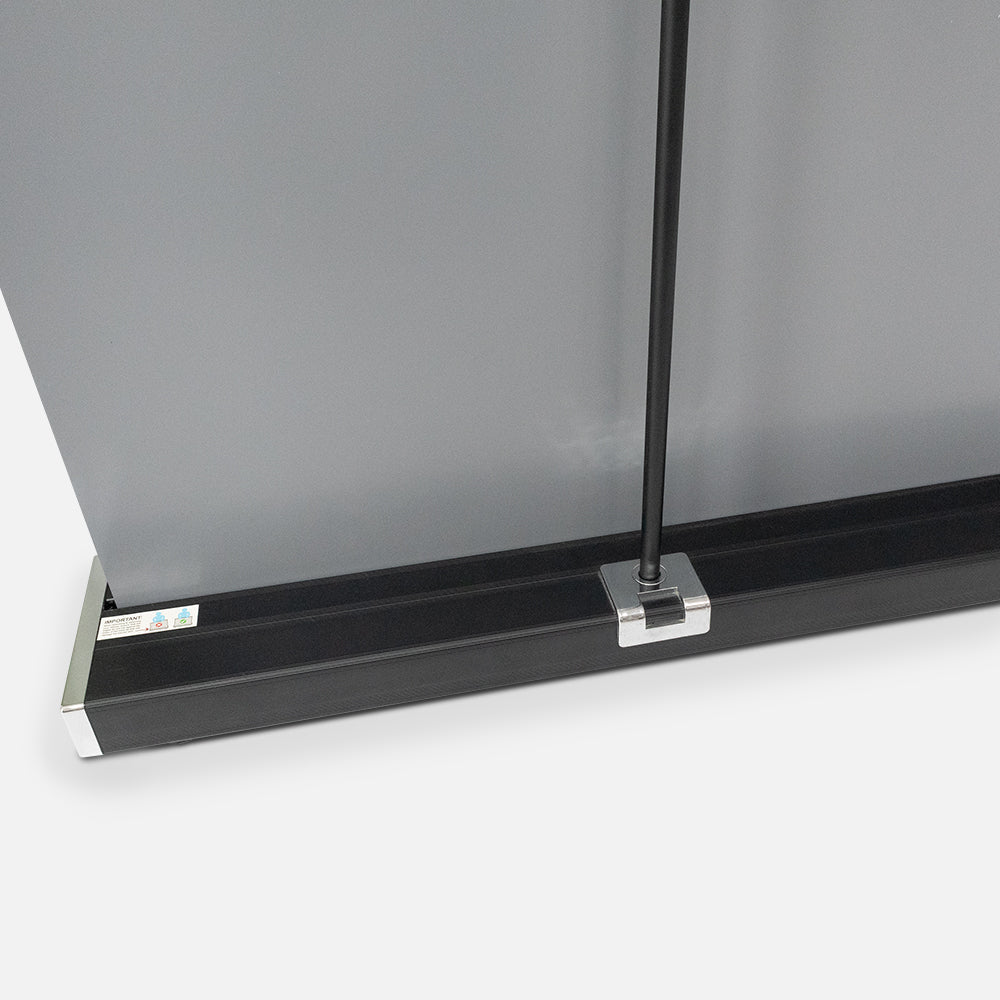

Support pole installation (base)
Insert the support pole into the hole on base.
-
Support pole installation (top)
Insert the top rail into the groove of support pole.
-
Oxford bag
We prepared Oxford bags for you to put roll up banner.
-
Printing
Size:850x2000mm
Thickness:0.21mm
Gramage:200g/㎡
PET graphic is printed by water based pigment printer.
Video
Parameter
AT-SHOW Roll Up Banner V801
| Product Name | Roll Up Banner |
| Product Code | V801 |
| Product Spec | 850x2000mm(33.5×78.4in) |
| If it can be customized | N/A |
| Product Feature | The knob in the base can adjust graphic tightness. |
Product Frame Specs
| Frame Size | 910x185x2100mm(35.8×7.3×82.7in) |
| Frame Main Material | Aluminum Plastic |
| Frame Weight | 4.7kg(10.3LB) |
| Outer Package Weight(1pc) | 6kg(13.2LB) |
| Accessories | Instruction |
Product Package Specs
| Package Bag | EPE Oxford Bag(1pc) |
| Inner Package Size | Cardboard Box 240x120x950mm(9.4×4.7×37.4in) |
| Product Quantity / Inner Carton | 1pc |
| Outer Package Size | Cardboard Box 970x260x500mm(38.2×10.2×19.7in) |
| Product Quantity / Outer Carton | 4pcs |
| Total Outer Package Weight | 24kg(52.8LB) |
Graphic Specs
| Graphic Size | 850x2000mm(33.5×78.4in) |
| Graphic Material | PET |
| Thickness of Graphic Material | 0.21mm |
| Grammage of Graphic Material | 200g/㎡ |
| Printing Technology | Water Based Pigment Printing |
Product Shiping Specs
| 20GP(General Purpose Container) | 888pcs |
| 40GP(General Purpose Container) | 1776pcs |
| 40HQ(High Cube Container) | 2156pcs |
| Express Service | Available, MOQ: 1pc |
Product Maintenance
| Warranty | 365D(exclude force majeuce,aritificial factors) |
Case
-
Case-1
-
Case-2
FAQ
1. Question: In what situations is the Roll Up Banner V801 typically used?
A: The Roll Up Banner V801 is an ideal tool for indoor exhibition promotion, commonly used in shopping malls, exhibitions, sports stadiums, and more.
2. Question: Is the graphic material of the Roll Up Banner V801 waterproof?
A: The graphic is made of PET material, which is waterproof.
3. Question: Will the printed graphic on the Roll Up Banner V801 be blurry?
A: No, the graphic is printed using a Six-Color Water Based Pigment process, ensuring no color difference and excellent clarity.
4. Question: Is the Roll Up Banner V801 portable?
A: Yes, it is convenient to carry. We provide an Oxford bag for packaging, making it easy for you to carry.
5. Question: Does the Roll Up Banner V801 require any other tools for assembly?
A: No, it doesn't. It can be easily assembled by one person.
6. Question: How is the stability of the Roll Up Banner V801?
A: The graphic is tightly clamped by the graphic clamp, and the support pole holds up the graphic, preventing any tilting or collapsing, making it very stable.
