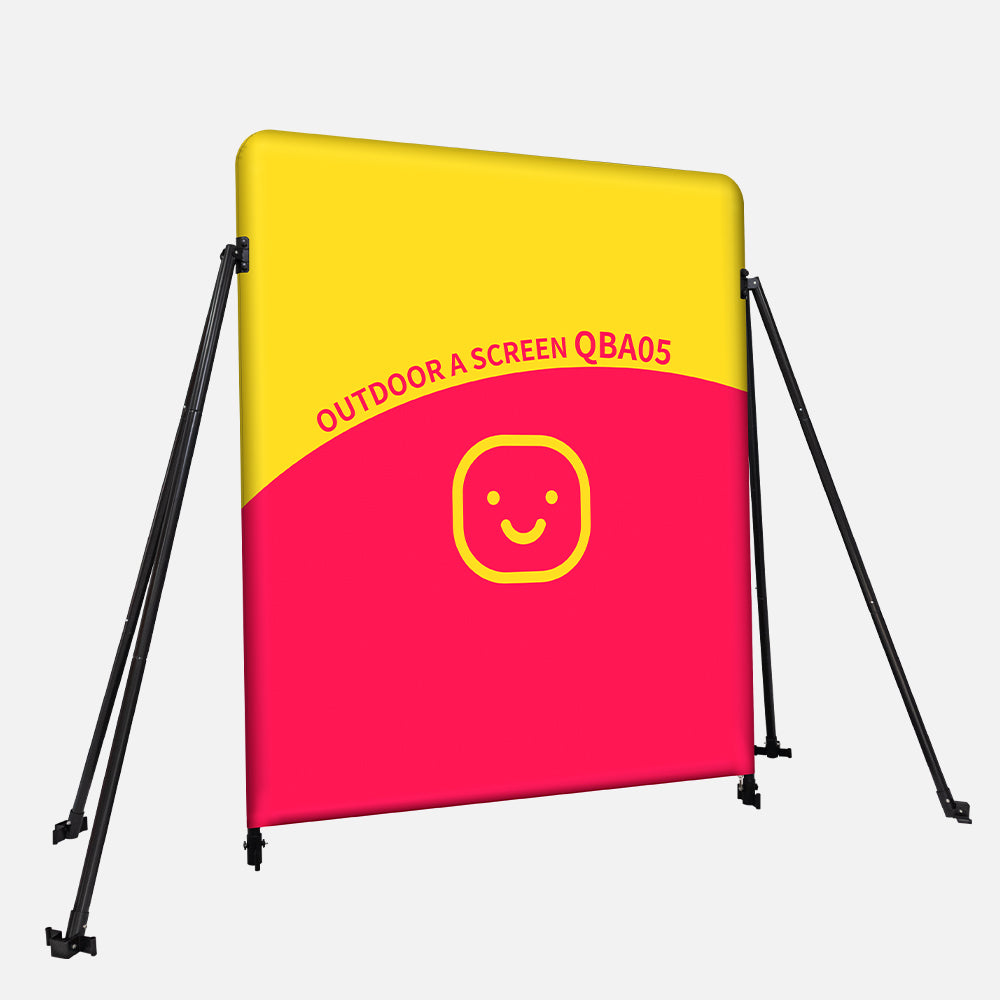

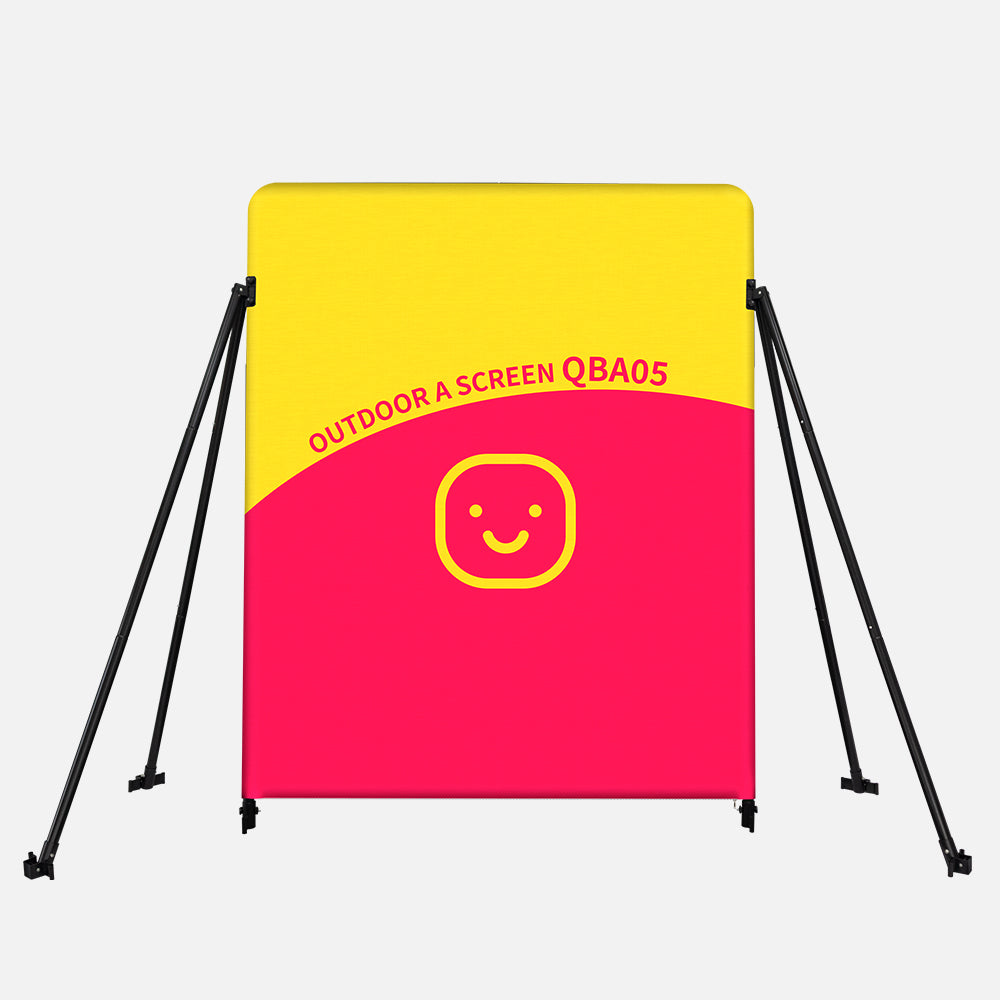

Outdoor A Screen QBA05
Couldn't load pickup availability
Delivery
The transportation time is usually 5-30 days
Spec: 2000x2400mm
Frame Size(WxDxH): 2000x45x2400mm
Frame weight:
Maximum weight：
Carton(WxDxH): 1075x380x230mm(42.3×15×9.1in)
Graphic: The material of graphic is PU+polyester. Graphic size is 2000x2400mm. With 4-color printing.
Application: Suitable for outdoor use such as grasslands and beaches.
Product
Product Introduction

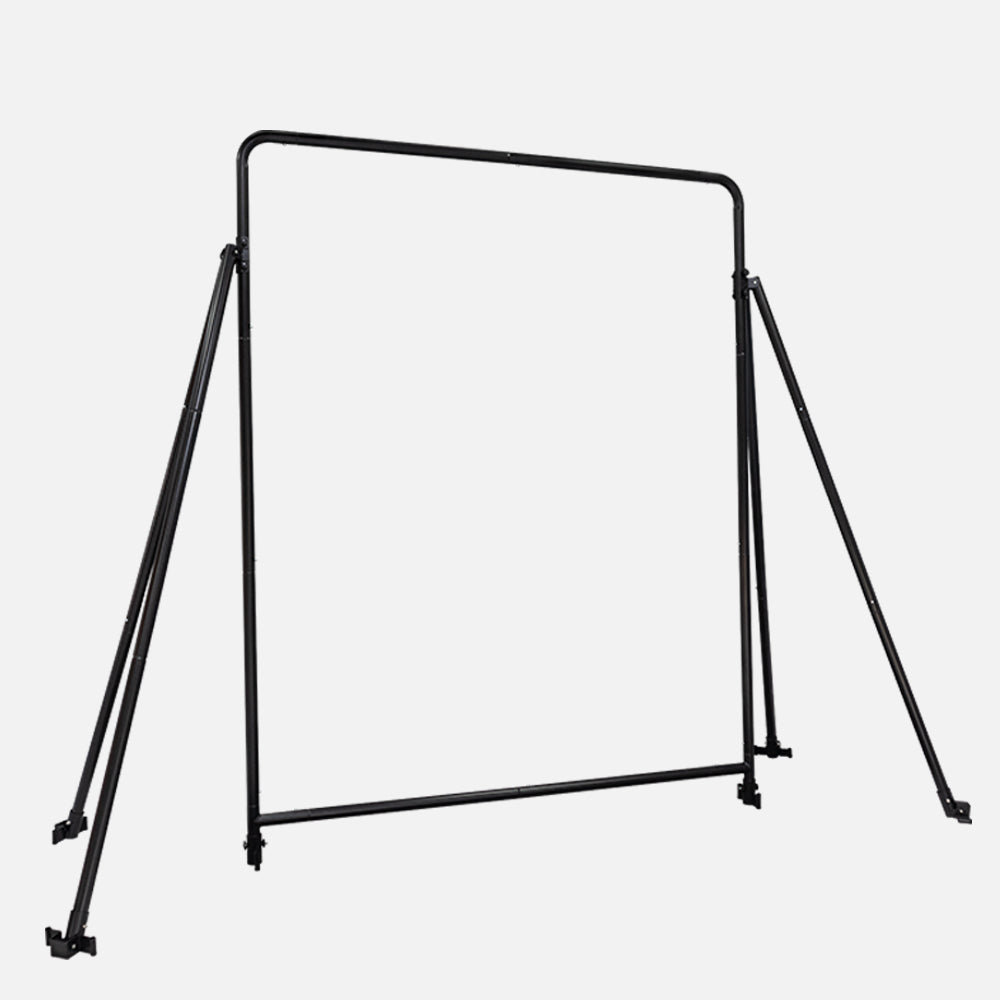

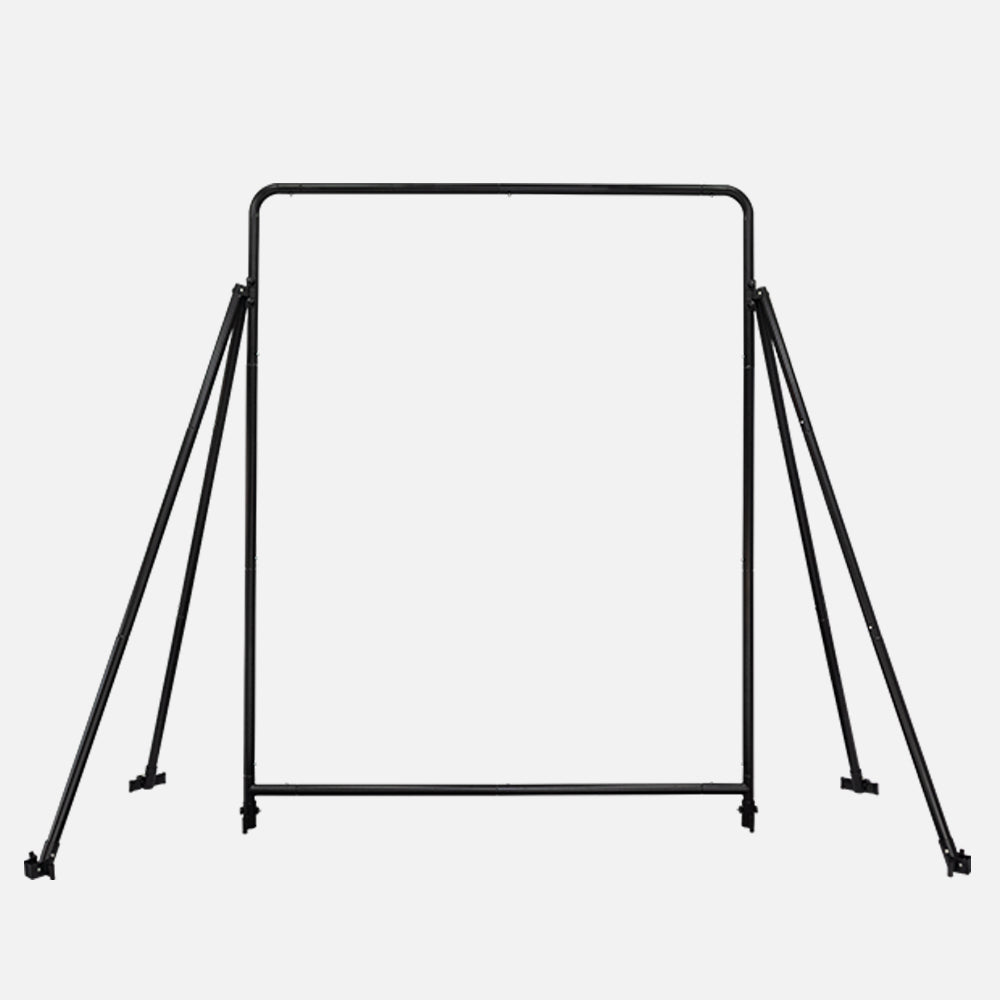

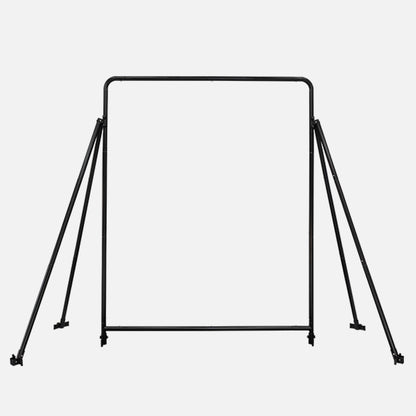

1. The structure uses high-quality aluminum profiles, which are sturdy and durable. It is fixed to the ground with ground nails, and has good wind resistance .
2. Suitable for outdoor use such as grasslands and beaches, large background images are better for advertising and promotion.
3. The package is small and easy to transport.
4. Easy to install, no tools required.
5. The printing banner is easy to change and can be used repeatedly.
-
Product size：
2000x45x2400mm
-
Complete set
1.Single head aluminum tube (10 pcs)
2.Double-ended aluminum tube (2 pcs)
3.Elbow aluminum pipe (2 pcs)
4.Graphic (1 pc)
5.Lower part of diagonal bar (4 pcs)
6.Upper part of diagonal bar (2 pcs)
7.T-joint aluminum pipe (2 pcs)
8.Base (2 pcs)
9.Long screw knob (2 pcs)
10.Ground nails (12 pcs)
11.Short screw knob (8 pcs)
-
Product assemble instruction
Install the diagonal bar -
Install the diagonal bar
1.Press down on the button, align it with the hole, and butt the aluminum tube with the upper part of the diagonal bar .
-
Install the diagonal bar
2.Press down on the button, align it with the hole, and butt the aluminum tube with the lower part of the diagonal bar. -
Install the main frame
Part.1 and part.2 are the same mounting structure.
Part.3 and part.4 are the same mounting structure.
-
Install the main frame
Part.1/part.2 assemble
1. Align and connect the base to the T-shaped aluminum pipe holes. -
Install the main frame
Part.1/part.2 assemble
2.Insert the long screw knob into the hole and tighten it.
-
Install the main frame
Part.1/part.2 assemble
4.Press down on the button, align it with the hole, and butt the bottom joint with the single head aluminum tube. -
Install the main frame
Part.1/part.2 assemble
3.Press down on the button, align it with the hole, and butt the bottom bar to the single head aluminum tube.
-
Install the main frame
Part.1/part.2 assemble
5.Press down on the button, align it with the hole, and butt the vertical bar to the elbow aluminum bar. -
Install the main frame
Part.3/part.4 assemble
1.Press down on the button, align it with the hole, and butt the single head and double-ended aluminum tubes.
-
Main frame Assemble
1.Press down on the button, align it with the hole, and butt the upper bar with the vertical bar. -
Main frame Assemble
2.Press down on the button, align it with the hole, and butt the lower bar to the vertical bar.
-
Graphic assemble

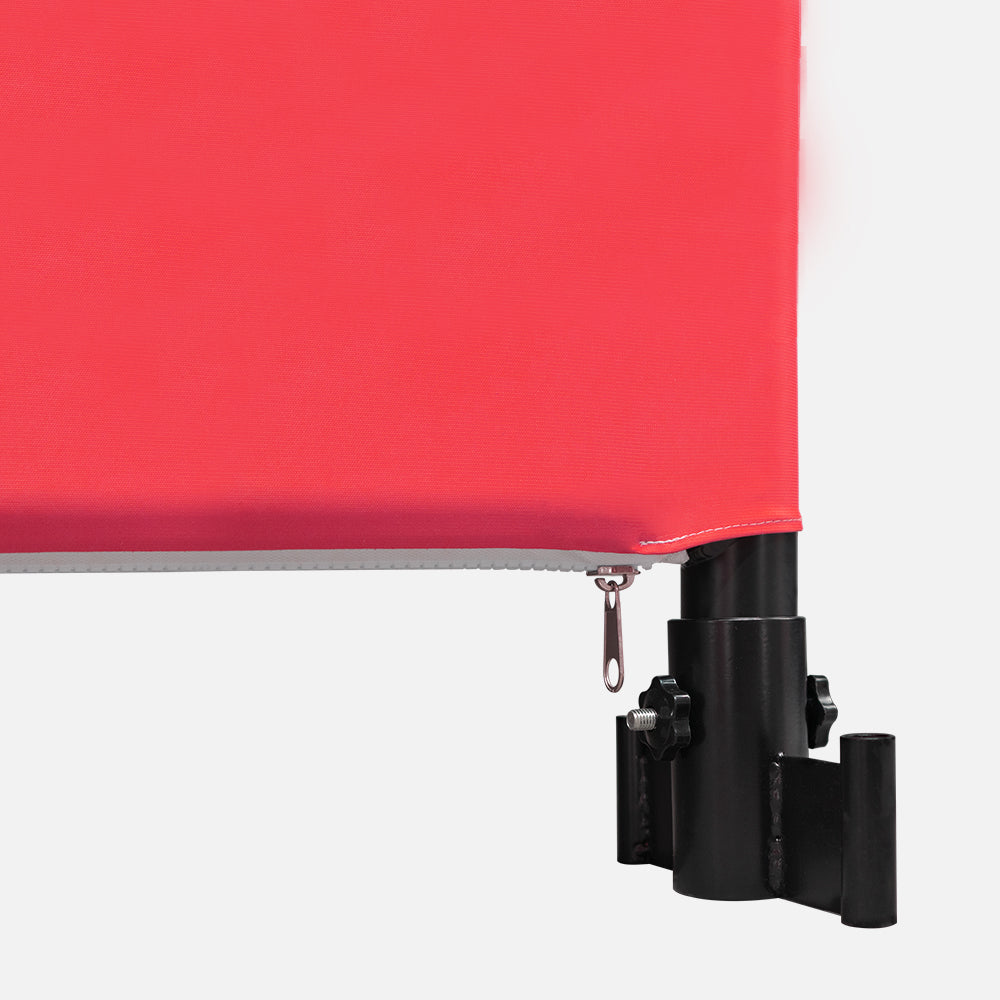

1.Pull it in on both sides, and pull it down to the bottom. -
Graphic assemble
2.Zip it up.
-
Diagonal support pole installation
-
Diagonal support pole installation

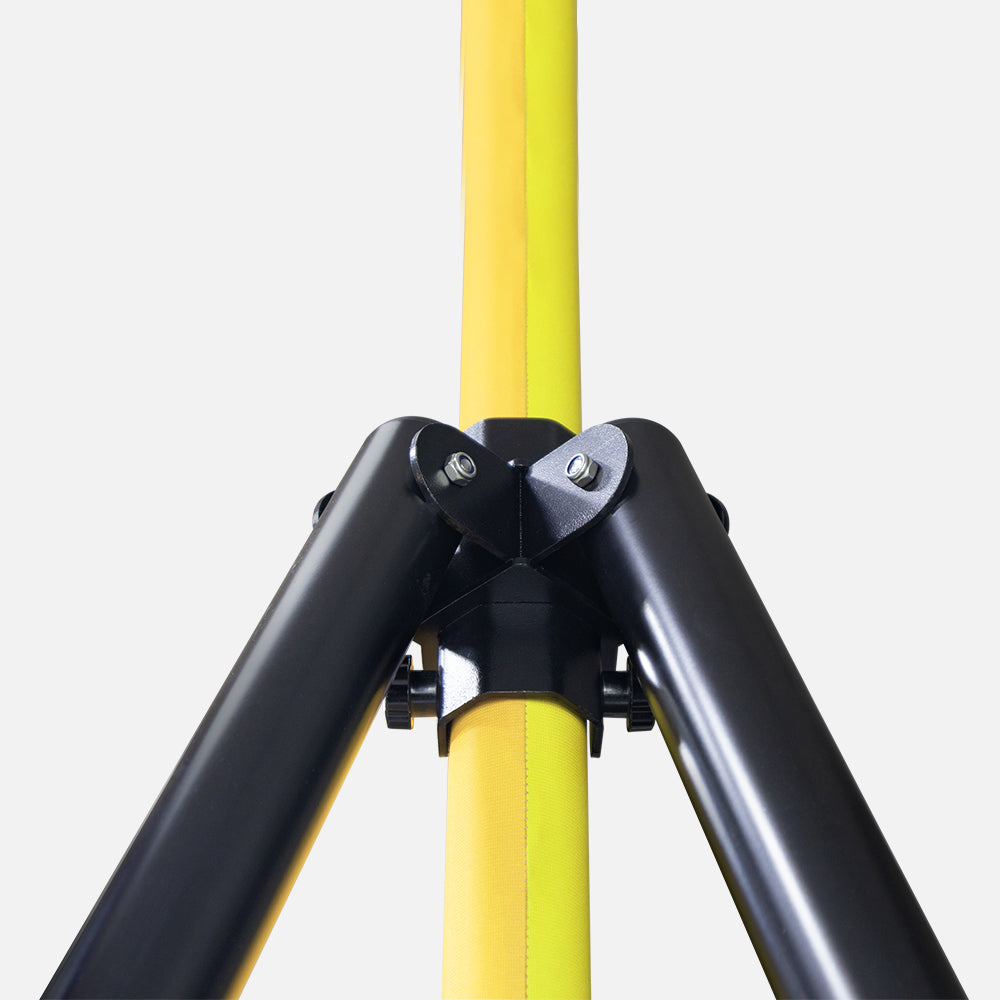

1.After installing the graphic, align the hole of the inclined strut with the hole of the graphic and the hole of the main frame.
-
Diagonal support pole installation
2.Insert the short screw knob into the hole and tighten. -
Hammer the nails into each hole.
-
Graphic information
printing size: 2000x2400mm
printing material: PVC+polyester
Thickness: 0.34mm
Gram weight: 250gsm
Printing method: 4-color printing -
Packaging information
Outer package (carton)-1075(W)x230(H)x380(L)mm
-
Packaging details
-
Packaging details
Video
Parameter
At-show Outdoor A Screen QBA05
| Product Name | Outdoor A Screen | Outdoor A Screen | Outdoor A Screen | Outdoor A Screen |
| Product Code | QBA05 | QBA05 | QBA05 | QBA05 |
| Product Spec | 800x1600mm(31.5×63in) | 1000×2000mm(39.4×78.7in) | 1200x2400mm(47.2×94.5in) | 2000×2400mm(78.7×94.5in) |
| If it can be customized | N/A | N/A | N/A | N/A |
| Product Feature |
Product Frame Specs
| Frame Size | 800x45x1600mm(31.5x1.8x63in) | 1000x45x2000mm(39.4x1.8x78.7in) | 1200x45x2400mm(47.2x1.8x94.5in) | 2000x45x2400mm(78.7x1.8x94.5in) |
| Frame Main Material | Aluminum Steel | Aluminum Steel | Aluminum Steel | Aluminum Steel |
| Frame Weight | ||||
| Outer Package Weight(1pc) | ||||
| Accessories | Instruction | Instruction | Instruction | Instruction |
Product Package Specs
| Package Bag | N/A | N/A | N/A | N/A |
| Inner Package Size | ||||
| Product Quantity / Inner Carton | ||||
| Outer Package Size | Carton 1100x300x400mm(43.3×11.8×15.7in) | Carton 1100x300x400mm(43.3×11.8×15.7in) | Carton 1100x300x400mm(43.3×11.8×15.7in) | Carton 1100x300x400mm(43.3×11.8×15.7in) |
| Product Quantity / Outer Carton | 1pc | 1pc | N/A | N/A |
| Outer Carton | 1 carton per piece | 1 carton per piece | 2 cartons per piece | 2 cartons per piece |
| Total Outer Package Weight | 17kg(37.4LB) | 19kg(41.8LB) | 25.2kg(55.4LB) | 39kg(85.8LB) |
Graphic Specs
| Graphic Size | 800x1600mm(31.5×63in) | 1000×2000mm(39.4×78.7in) | 1200x2400mm(47.2×94.5in) | 2000×2400mm(78.7×94.5in) |
| Graphic Material | PU+polyester | PU+polyester | PU+polyester | PU+polyester |
| Thickness of Graphic Material | 0.34mm | 0.34mm | 0.34mm | 0.34mm |
| Grammage of Graphic Material | 250g/㎡ | 250g/㎡ | 250g/㎡ | 250g/㎡ |
| Printing Technology | Direct Sublimation Printing | Direct Sublimation Printing | Direct Sublimation Printing | Direct Sublimation Printing |
Product Shipping Specs
| 20GP(General Purpose Container) | 210pcs | 210pcs | 105pcs | 105pcs |
| 40GP(General Purpose Container) | 430pcs | 430pcs | 215pcs | 215pcs |
| 40HQ(High Cube Container) | 510pcs | 510pcs | 255pcs | 255pcs |
| Express Service | Available, MOQ: 1pcs | Available, MOQ: 1pcs | Available, MOQ: 1pcs | Available, MOQ: 1pcs |
Product Maintenance
| Warranty | 365D(exclude force majeure, artificial factors) | 365D(exclude force majeure, artificial factors) | 365D(exclude force majeure, artificial factors) | 365D(exclude force majeure, artificial factors) |
FAQ
1. Q: Can ATSHOW Outdoor A Screen QBA05 be outdoor use?
A: Yes, The structure uses high-quality aluminum profiles, which are sturdy and durable. It is fixed to the ground with ground nails, and has good wind resistance , making it suitable for outdoor use on grass and sand.
2. Q: Is it printing material environmentally friendly?
A: It uses digital direct printing chemical fiber material images, which are recyclable and environmentally friendly.
3. Q: Is it easy to assemble?
A: It does not require any tools and can be easily installed and recycled by one person.
4.Q: Can it be reused?
A: Its structure is very convenient for anyone to change the printing banner anytime and anywhere to change the advertising .
Download
| Outdoor A Screen QBA05 | |||
|---|---|---|---|
| Product Name | Product Specification | Product Stats | Product Download |
| Outdoor A Screen QBA05 | 2000*2400mm |  |
|
| Outdoor A Screen QBA05 | 2000*2400mm | AI |  |
| Outdoor A Screen QBA05 | 2000*2400mm | CDR |  |
