Outdoor Roll Up Banner G66
Couldn't load pickup availability
Delivery
The transportation time is usually 5-30 days
Spec: 850x2000mm
Frame Size(WxDxH): 850x500x2000mm
Frame weight: 3.3kg
Maximum weight：18kg
Carton(WxDxH): 980x310x300mm,11kg, 2pcs
Graphic: The material of graphic is PVC. Graphic size is 850x2000mm. With 6-color printing.
Application: Suitable for advertising and promotion at the entrance of shopping malls, ball courts, coffee shops, and shops.
Product
-

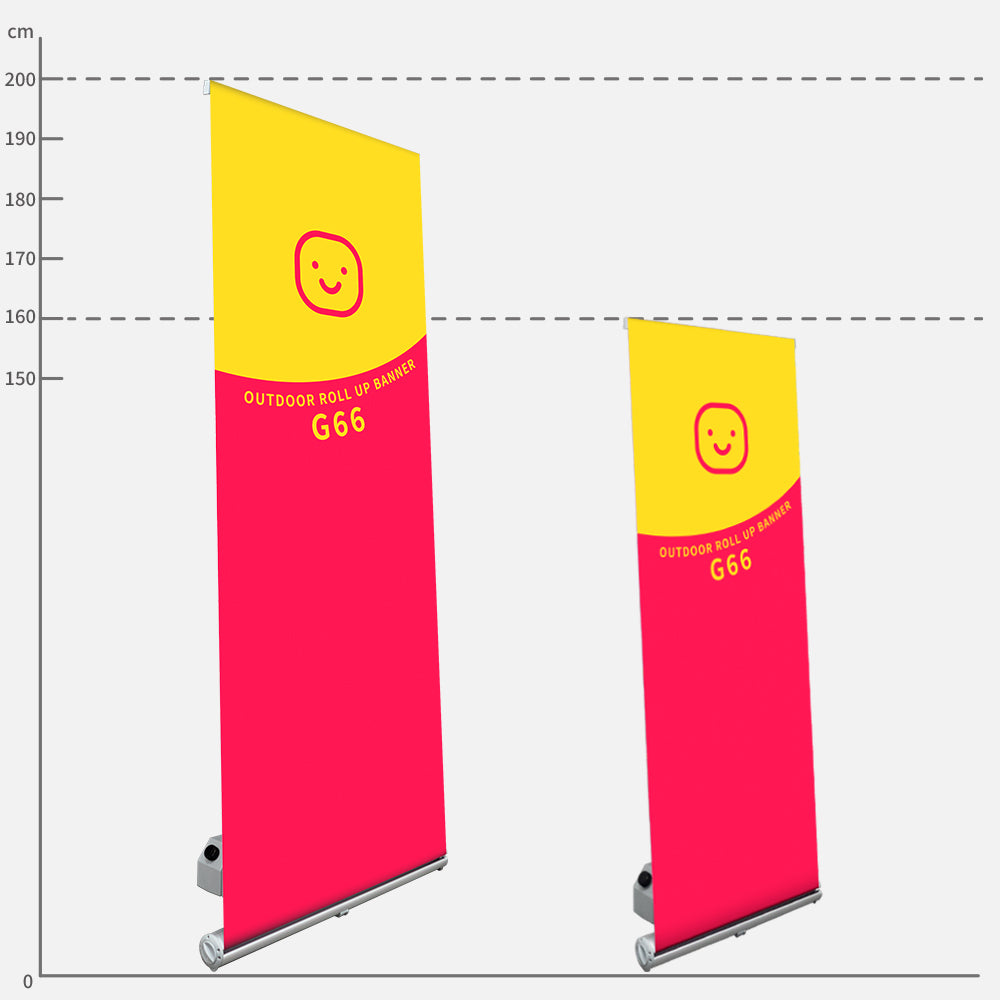

Product size
850x500x2000mm
600x400x1600mm -
Product size
850x500x2000mm
600x400x1600mm
-
Complete set
1. Plastic strip
2. Graphic
3. Poster bar
4. Aluminum main body
5. Trinodal pole
6. Water tank -
Graphic assemble instruction
1. Tear off the 3M double-sided tape. Put the graphic facing upward, paste the two ends of the picture along the positioning line of the plastic strip.
-
Graphic assemble instruction
2. Turn the lid.
-
Graphic assemble instruction
3. With the head of the pole facing up, fold the graphic in half once and insert the graphic with the another side facing up. And close the lid.
-
Graphic assemble instruction
4. Align the knob mark of the base so that the graphic slot is flush.
-
Graphic assemble instruction
5. Bend the graphic and align it with the slot into the base. And insert the graphic into the base.
-
Graphic assemble instruction
6. Turn the knob and fold the graphic.
-
Product assemble instruction
1. Expand the base feet and tighten the knob.
-
Product assemble instruction
2. Unfold the trinodal pole.
-
Product assemble instruction
3. Pull out the graphic.
-
Product assemble instruction
4. Insert the trinodal pole to the base feet.
-
Product assemble instruction
5. Attach to the trinodal pole.
-
Product assemble instruction

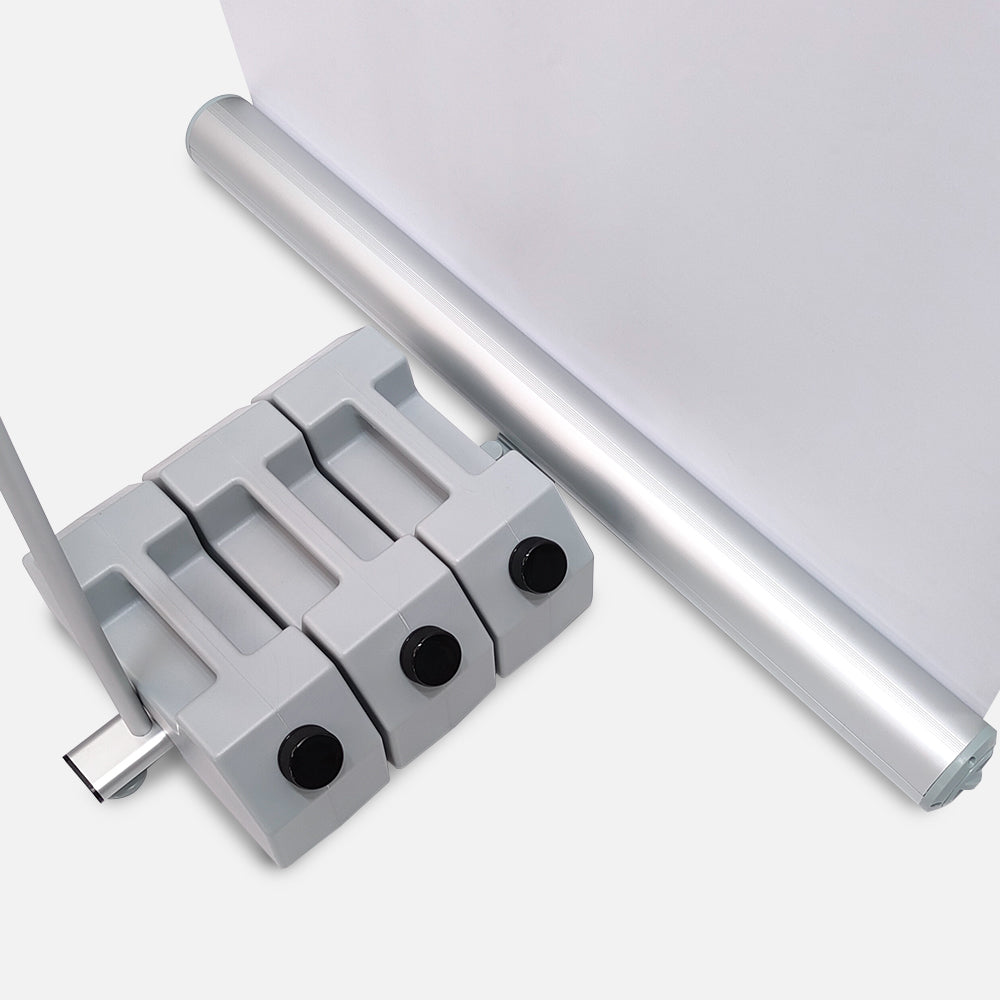

6. Fill the water tank with about 5KG of sand (or 3L of water) and tighten the lid.
-
Product assemble instruction
7. Put the water tank on the base feet.
-
Packaging information
1. Outer package (carton) - 960(W)x140(H)x290(L)mm
2. Portable Oxford bag - 110(W)x270(H)x930(L)mm
3. Inner oxford bag - 100(W)x130(H)x930(L)mm
4. Shrink pocket - 110(W)x130(H)x970(L)mm -
Graphic information
Printing size: 850x2085mm
Printing material: PVC
Thickness: 0.3mm
Gram weight: 480gsm
Printing method: 6-color printing
Video
Parameter
At-show Roll Up Banner G66
| Product Name | Roll Up Banner | Roll Up Banner |
| Product Code | G66 | G66 |
| Product Spec | 850x2000mm(33.5×78.4in) | 600x1600mm(23.6×63in) |
| If it can be customized | N/A | N/A |
| Product Feature |
Product Frame Specs
| Frame Size | 890x500x2050mm(35×19.7×80.7in) | 640x500x1650mm(25.2×19.7×65in) |
| Frame Main Material | Aluminum Plastic | Aluminum Plastic |
| Frame Weight | 4.1kg(9LB) tank:2.5L | |
| Outer Package Weight(1pcs) | 5.5kg(12.1LB) | |
| Accessories | Instruction | Instruction |
Product Package Specs
| Package Bag | EPE Oxford Bag(1pc) | EPE Oxford Bag(1pc) |
| Inner Package Size | N/A | N/A |
| Product Quantity / Inner Carton | N/A | N/A |
| Outer Package Size | Cardboard Box 980x300x320mm(38.6×11.8×12.6in) | Cardboard Box 730x300x320mm(28.7×11.8×12.6in) |
| Product Quantity / Outer Carton | 2pcs | 2pcs |
| Total Outer Package Weight |
Graphic Specs
| Graphic Size | 850x2000mm(33.5×78.4in) | 600x1600mm(23.6x63in) |
| Graphic Material | PET | PET |
| Thickness of Graphic Material | 0.21mm | 0.21mm |
| Grammage of Graphic Material | 200g/㎡ | 200g/㎡ |
| Printing Technology | Water based pigment printing | Water based pigment printing |
Product Shiping Specs
| 20GP(General Purpose Container) | 296pcs | 398pcs |
| 40GP(General Purpose Container) | 616pcs | 826pcs |
| 40HQ(High Cube Container) | 722pcs | 970pcs |
| Express Service | Available, MOQ: 1pc | Available, MOQ: 1pc |
Product Maintenance
| Warranty | 365D(exclude force majeuce,aritificial factors) | 365D(exclude force majeuce,aritificial factors) |
FAQ
1. Q: Can At-Show outdoor roll up banner G66 be used outdoors?
A: Yes, G66 has a wide grounding area and is equipped with three water tanks each containing 5KG sand. It has a corrosion-resistant aluminum frame structure and can be used at various shopping malls, coffee shops, and gym entrances.
2. Q: Can it be used on the square?
A: Yes, it has a large grounding area and the structure of a heavy water tank, which can maintain a standing state when collided or pushed by pedestrians.
3. Q: Is its printing material environmentally friendly?
A: It uses digitally printed PVC material images, which are recyclable and environmentally friendly.
4.Q: Is it easy to assemble?
A: It does not require any tools and can be easily installed and recycled by one person.
5.Q: Can it be reused?
A: Its structure is very convenient for anyone to change the screen anytime and anywhere to change the advertising content.
