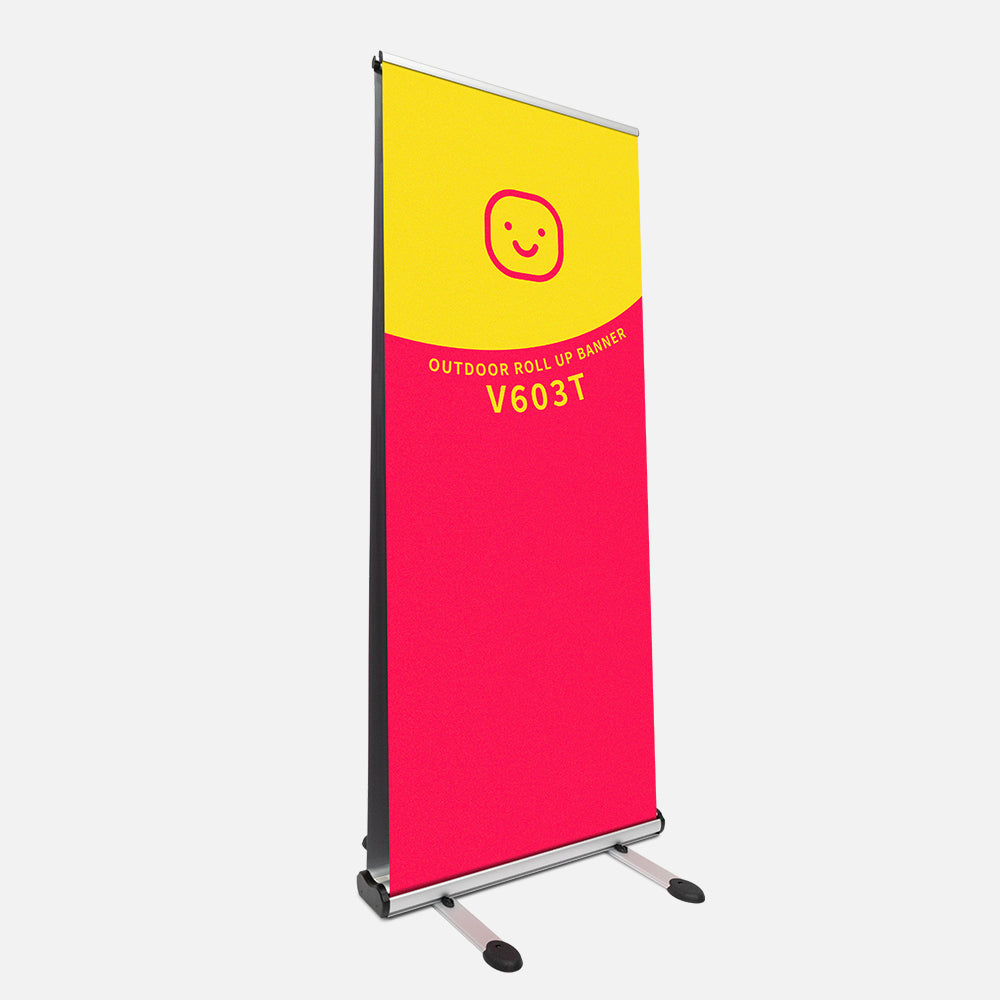

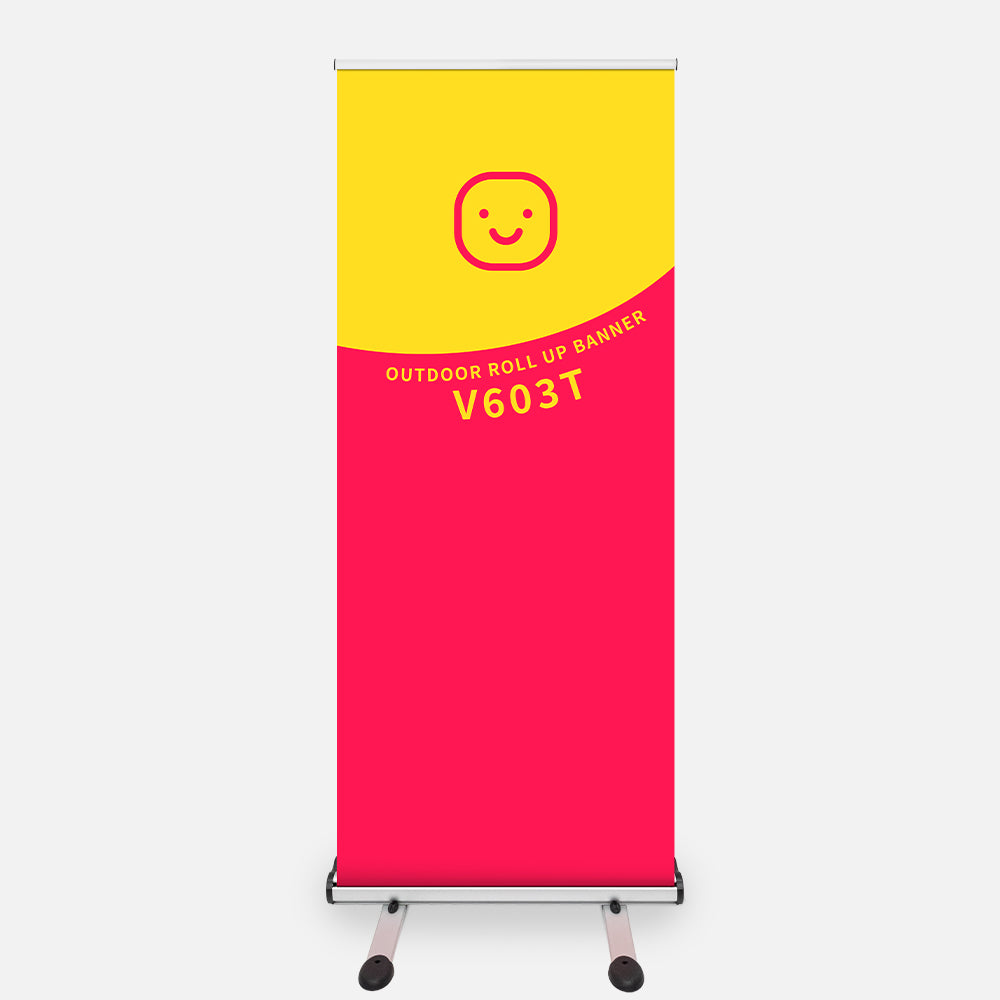

Outdoor Roll UP Banner V603T
Price includes GST for Australian customers. International customers: local taxes and duties are not included.
Couldn't load pickup availability
Delivery
The transportation time is usually 5-30 days
Spec: 850x2000mm
Frame Size(WxDxH): 902x604x2076mm
Frame weight: 8kg
Carton(WxDxH): 970x320x240mm
Graphic: The material of two graphics are fabric. Every graphic size is 850x2000mm.Fabric graphic is printed by 6 color direct sublimation printer.
Introduction: The V603 is engineered for heavy-duty use in public environments.
It is ideal for locations such as train stations, plazas, and commercial streets, featuring a widened base and weather-resistant graphics that ensure stable, all-weather outdoor display.
Application: Recommended for installation at public exits, central plazas, and transportation hubs.
Design should emphasize clear themes and strong visual appeal.
When used outdoors, add sandbags or secure with ground stakes for extra stability and safety.
Product
-
Composition Structure and Core Features
· Weighted metal base designed to withstand strong winds
· Highly weather-resistant graphic material that is UV-proof, waterproof, and fade-resistant
· Fixed-height, single-sided display structure for clean, distraction-free visuals
· Base includes pre-set holes for ground stakes, allowing secure installation
· Industrial-grade printing suitable for long-term outdoor exposure -
Component

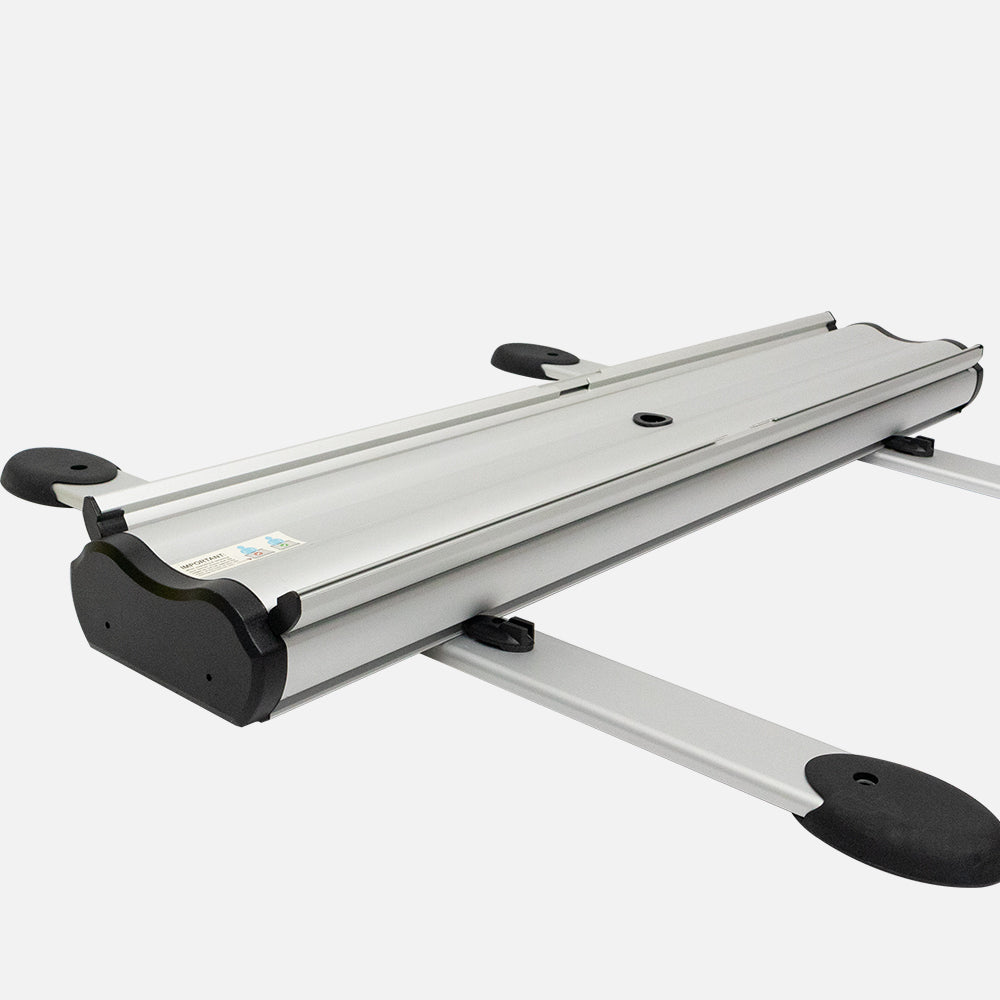

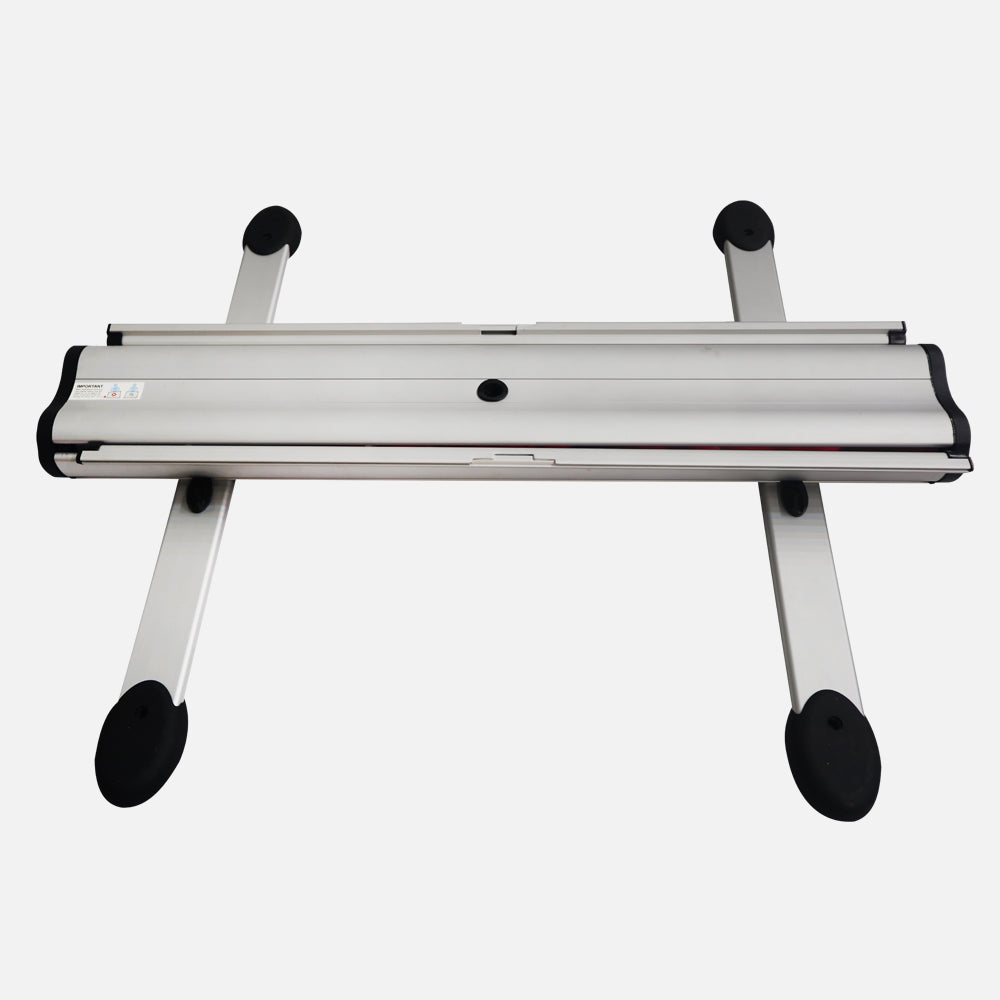

1.Aluminum base2.Feet folding3.Support pole4.Metal spike
-
Graphic clamp
Graphics are clamped by top bars. -
Support pole
Three aluminum poles joined by bungee cords make up the support pole.
-
Support pole
Put the top of support pole to the slot of poster clip bar . -

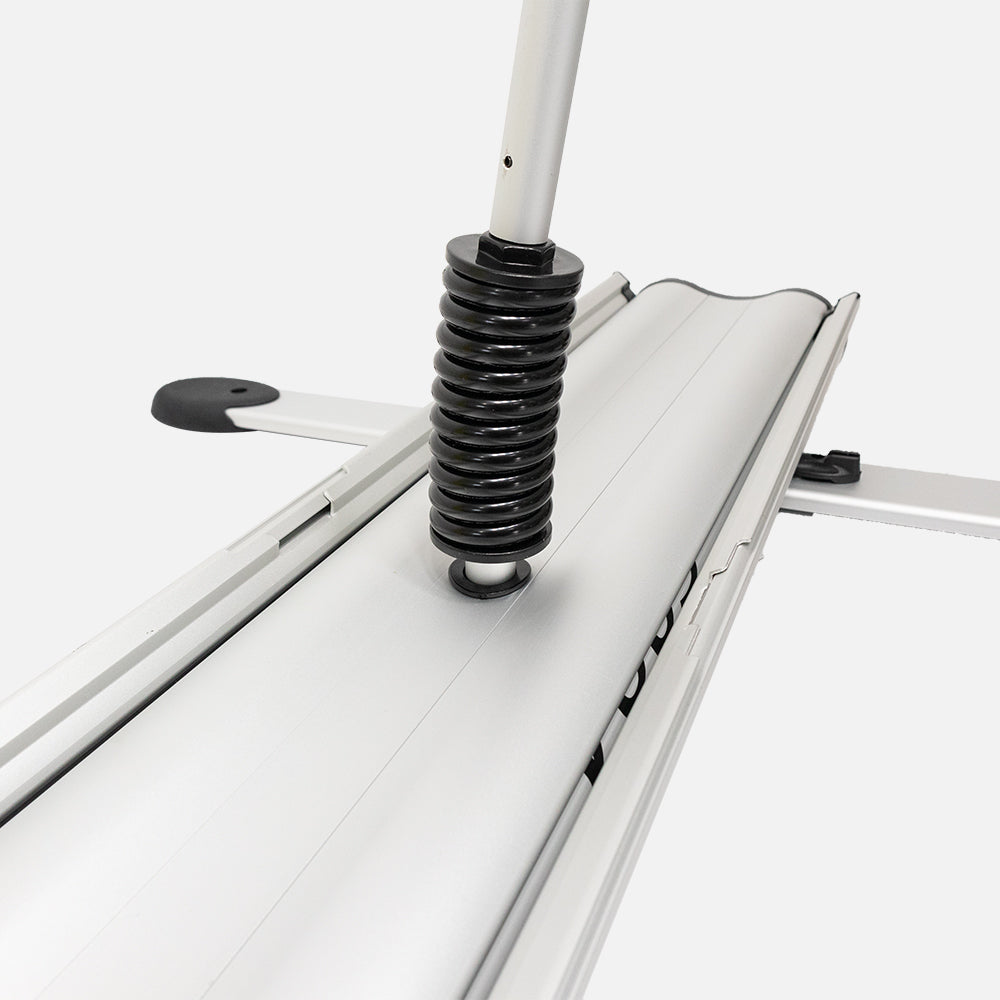

Steel spring
The steel spring make it sway in the wind.
-

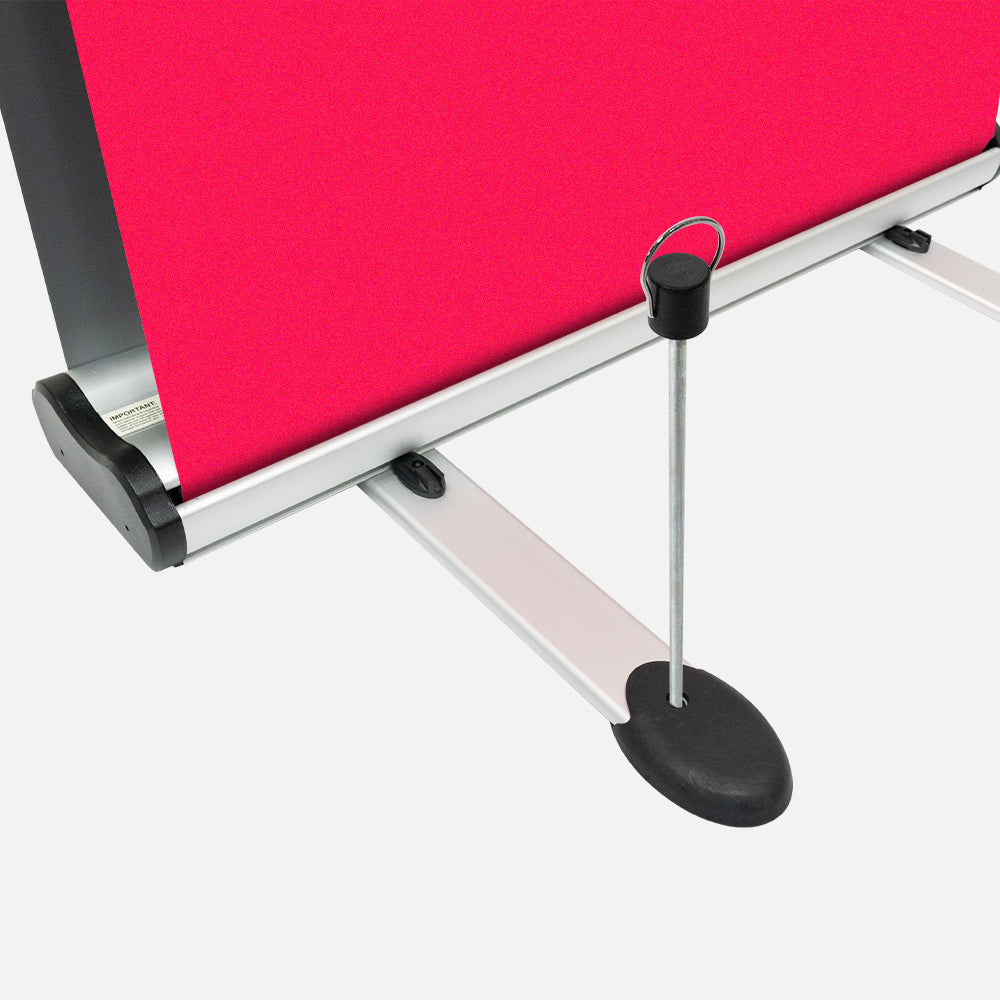

Foot and spike
1.When the wind is heavy, you can pass the metal spike through the hole in the foot and insert it into the ground to fix the entire frame.2.Nylon plastic part of foot end cover is suitable for outdoor use and durable. -
Because this product is popular across different countries and industries, our customers often refer to it by various names in their own familiar language.
Public Display Roll-Up Banner ｜ Windproof Advertising Stand ｜ Commercial Street Outdoor Display
Video
Parameter
AT-SHOW Outdoor Roll Up Banner V603T
| Product Name | Outdoor Roll Up Banner V603(V603T) |
| Product Code | V603(V603T) |
| Product Spec | 850x2000mm(33.5×78.7in) |
| If it can be customized | N/A |
| Product Feature | It can sway in the wind.We use metal spike to fix it on the ground. |
Product Frame Specs
| Frame Size | 902x604x2076mm(35.5×23.8×81.7in) |
| Frame Main Material | Aluminum Plastic Stainless Steel |
| Frame Weight | 8.3kg(18.3LB)C |
| Outer Package Weight(1pc) | 11kg(24.2LB) |
| Accessories | Instruction φ4 slotted screwdriver adjustable knob |
Product Package Specs
| Package Bag | EPE Oxford Bag(1pcs) |
| Inner Package Size | |
| Product Quantity / Inner Carton | |
| Outer Package Size | Cardboard Box 970x130x320mm(38.1×5.1×12.6in) |
| Product Quantity / Outer Carton | 1pcs |
| Total Outer Package Weight | 11kg(24.2LB) |
Graphic Specs
| Graphic Size | 850x2000mm(33.5×78.7in) |
| Graphic Material | Polyester |
| Thickness of Graphic Material | 0.3mm |
| Grammage of Graphic Material | 190g/㎡ |
| Printing Technology | Direct Sublimation Printing |
Product Shiping Specs
| 680pcs | |
| 40GP(General Purpose Container) | 1410pcs |
| 40HQ(High Cube Container) | 1650pcs |
| Express Service | Available, MOQ: 1pc |
Product Maintenance
| Warranty | 365D(exclude force majeuce,aritificial factors) |
FAQ
1.Q: Is the use of the Outdoor Roll Up Banner V603T restricted to certain locations?
A: The V603T has a wide range of applications and is suitable for outdoor use, capable of withstanding conditions in snowy fields or beach sands.
2.Q: What is the quality of the frame material of the Outdoor Roll Up Banner V603T?
A: The V603T's frame is made of high-quality aluminum, which is corrosion-resistant and waterproof, making it highly suitable for outdoor use.
3.Q: Is the installation process of the Outdoor Roll Up Banner V603T convenient?
A: Installing the outdoor Roll Up Banner V603T is very simple and quick, easily manageable by one person, and we also provide relevant installation information on our website.
4.Q: How is the print quality of the Outdoor Roll Up Banner V603T's graphics?
A: The V603T's graphics are printed using a Six-Color Water Based Pigment process, which offers high color reproduction, clear images, and excellent print quality.
5.Q: Does this double-sided Outdoor Roll Up Banner allow me to choose different pattern designs for each side?
A: This double-sided Outdoor Roll Up Banner offers personalized pattern customization services. You can choose the same pattern for both sides or design different patterns for each side to meet your display and promotional needs.
6.Q: How is the stability of the Outdoor Roll Up Banner V603T?
A: The V603T is equipped with a graphic clamp for fixation, a wide base, and comes with support pole and metal spikes, making it very wind-resistant and stable.
7.Q: Can the Outdoor Roll Up Banner V603T be reused multiple times?
A: The V603T is designed for multiple uses, durable and convenient, helping you save costs and reduce installation effort.
8.Q: What about the convenience of carrying the Outdoor Roll Up Banner V603T?
A: We provide an Oxford cloth hand carry bag for easy portability.
